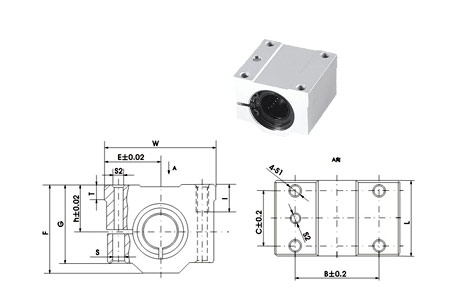

| MODEL
NO. |
SHAFT
DIAMETER |
MAIN
DIMENSIONS |
MOUNTING
DIMENSIONS |
WEIGHT(kg) |
| B |
C |
S |
S1 |
S2 |
l |
| h |
E |
W |
L |
F |
G |
T |
| KBSB12AJ |
12 |
18 |
21.5 |
43 |
32 |
35 |
31 |
6 |
32 |
23 |
4.5 |
M5 |
M5 |
32 |
0.095 |
| KBSB16AJ |
16 |
22 |
26.5 |
53 |
36 |
42 |
37 |
7 |
40 |
26 |
6 |
M6 |
M6 |
36 |
0.161 |
| KBSB20AJ |
20 |
25 |
30 |
60 |
45 |
50 |
44 |
7.5 |
45 |
32 |
7 |
M8 |
M8 |
45 |
0.262 |
| KBSB25AJ |
25 |
30 |
39 |
78 |
58 |
60 |
52.5 |
8.5 |
60 |
40 |
9 |
M10 |
M10 |
58 |
0.487 |
| KBSB30AJ |
30 |
35 |
43.5 |
87 |
68 |
70 |
62 |
9.5 |
68 |
45 |
9 |
M10 |
M10 |
68 |
0.726 |
| KBSB40AJ |
40 |
45 |
54 |
108 |
80 |
90 |
80 |
11 |
86 |
58 |
11 |
M12 |
M12 |
80 |
1.276 |
|
